Digital Compass



Dinsmore 1490 Digital Compass

Compass Specifications:

 · Power:  5-18 volts DC @ 30 ma

 · Inputs:  Earth's magnetic field

 · Outputs:  Open collector NPN, sink 25 ma per direction, digital output 1 or 0

 · Size:  12.7 mm diameter, 16 mm tall

 · Temp:  -20 to +85 degrees C

 · Provides 8 headings (N, NE, E, SE, S, SW, W, and NW).

 · 12 degree tilt with acceptable results

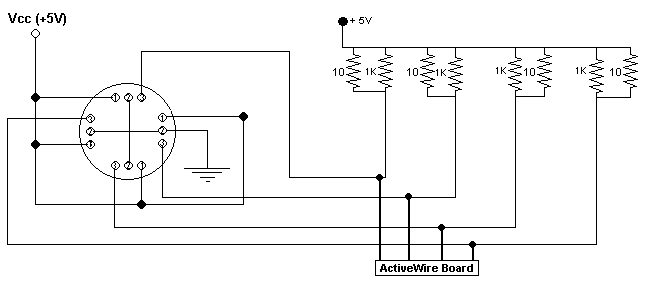

Schematic shows digital compass feedback circuit.
