[ Relays ]
![](images/motor_1.gif)

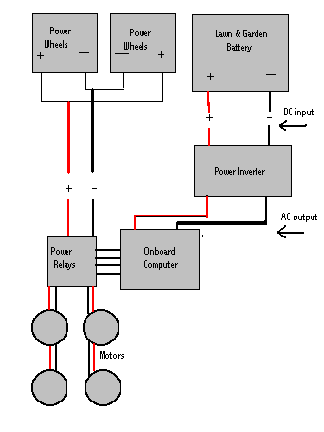

Block diagram shows robots motor control.
Robot Turns Similar
to a Tank:
Split into left and right sides with each side having 2
motors
Forward = both sides forward
Reverse = both sides reverse
Left = right side forward/left side reverse
Right = left side forward/right side reverse
