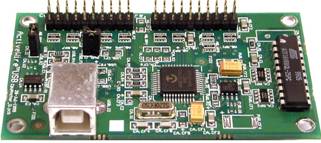

Active Wire USB Board
Specifications
Speed
•
•12
Mbps peak speed
• Fully compatible with USB specifications
Input/Output
•
16 bit parallel
•
Each bit individually programmable for input or output
•
3.3v CMOS logic
•
5v TTL level logic
•
1.6mA sink or source
Power Requirement
•
DC 5v 100mA peak supplied from USB
•
DC 5v 300mA Max. supply from USB available to external circuit
•
Optional DC 5v external supply to header pin
